360° Graphical inspection for cylindrical containers

Circumspect is perfect for applications that require graphical inspection of a round or cylindrical container. Cylindrical containers often pose a challenge for inspection systems because it is usually impossible to control where the label is facing on a production line. If the goal is to inspect a graphic or allergen text, how can this be done after the label is applied to the container? Circumspect is the solution for clients in the food & beverage industry who want to have end-of-process inspection of a round product.

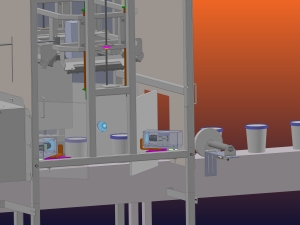

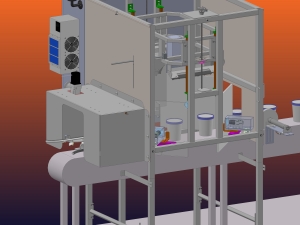

The CircumSpect® system creates a 360 degree view of the containers using 4 side-mounted cameras. The software algorithm combines the 4 images into one continuous “un-wrap” image of the entire side circumference. The un-wrap image can then be processed by a wide range of standard machine vision tools. No matter what direction the bottle faces, the un-wrap image will always be the same.

The vision tools available for use include:

  • Pattern matching
  • Pattern inspection
  • Gauging
  • Brightness inspection
  • Color matching
  • Linear barcode reading
  • 2D barcode reading
  • Optical character verification (OCV) of well-printed codes
  • Multiple vision tools may be applied to each image and inspection recipe

A strong recipe manager is standard on the CircumSpect® system. This allows users to quickly switch between pre-configured recipes and transfer recipes from one system to another. VAIA will work with clients on any specific communication requirements, such as how to automatically upload recipes based on the client’s master production schedule or scanning a work-order.

Request Quote

  • User-friendly GUI to configure and load the label/container inspection recipes, minimizing changeover time
  • Store and manage hundreds of SKU inspection recipes
  • Secure access in the form of multiple log-ins and passwords
  • Color touch-screen monitor
  • Maintain production speeds up to 900 per minute
  • Very low false reject rates
  • Non-contact inspection and no slowing of the production line
  • No special container handling needed, other than to ensure that the containers are appropriately spaced on the conveyor as they pass through the CircumSpect system
  • Inspection tools include:
    • Pattern-finding to match flavor graphics, product graphics, logos, or other features
    • 1D and 2D barcode reading to identify the label or container
    • Tools to measure label placement and skew
    • Any number of vision tools can be used for inspection
  • Event logging to create an audit trail for log-ins, log-outs, container SKU changes, and recipe configuration changes
  • Reporting of session (run) statistics at the end of a product run
  • Data analytics support

  • Fully wash-down NEMA-4X configuration
  • 5th camera options for lid presence and verification or code verification
  • Fool-proof height adjustment mechanism for the top camera
  • Singulator to guarantee correct product spacing
  • Centering Device
  • Rejecter

  • Imaging equipment

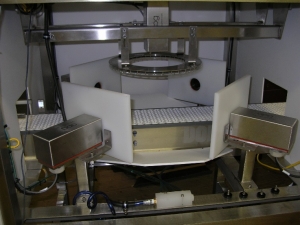

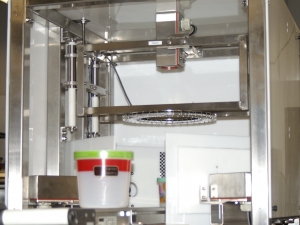

    • 4 side-mounted monochrome cameras for circumferential inspection
    • 1 top-mounted color or monochrome camera for lid inspection
  • Diffuse LED strobe lighting
  • Utilizes approximately 5 feet of linear conveyor space, including the rejecter
  • Easy to install over an existing straight section of conveyor
  • Documentation package
  • Spare parts list provided
